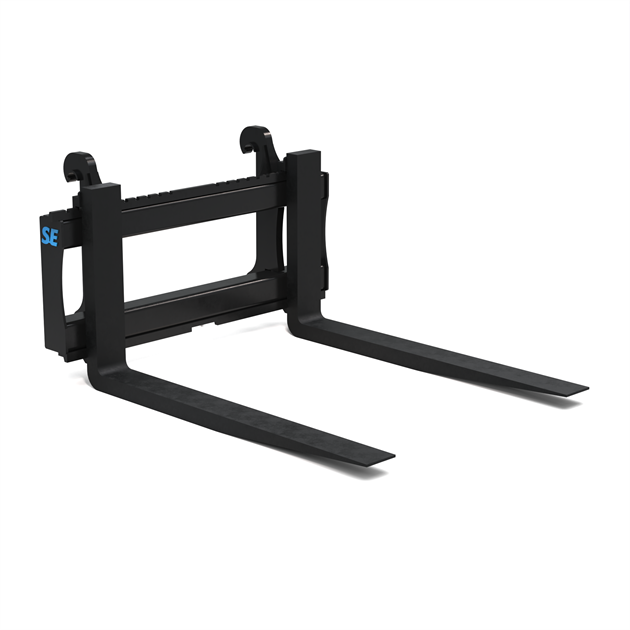

AVANT 200 800/0800 0,7t Widły do palet;

SE500003

SE Equipment manufactures standard mechanical pallet fork frames designed to meet today’s high requirements for safety and quality.

The pallet fork frame features integrated couplings, providing the operator with optimal visibility.

To prevent the forks from sliding off, a safety bolt is positioned under the center of the lower crossbar.

The frame is equipped with welded stop plates that prevent lateral movement of the forks, and the forks themselves are suspended at the center of the crossbar, making installation easier.

Fork positioning is carried out manually by unlocking the upper locking bar, sliding the forks to the desired position, and re-securing them with the locking bar.

To facilitate fork replacement, our fork frames are designed in accordance with European standards (FEM model).

TECHNICAL DATA
Coupling: Avant / Multione
Length: 800 mm
Weight: 80 kg
Width: 800 mm
